AE Ergonomics produces advanced ergonomic lifting and positioning equipment capable of handling the most demanding applications safely. Our solutions provide well-being and efficiency to workers, and our decades of industry experience lends to the close relationships we've built with people like you.

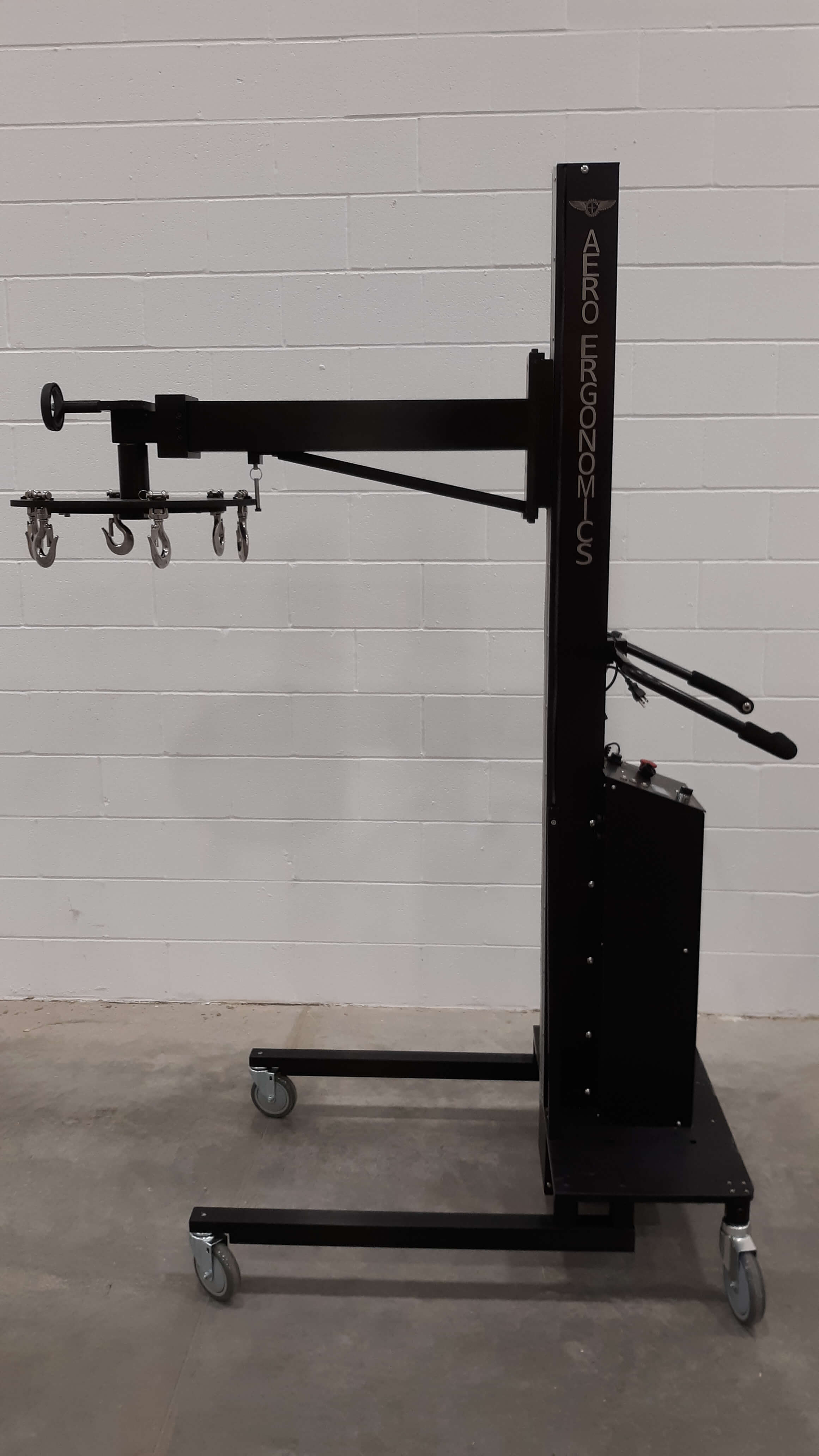

↓ Ergo-Lyft ↓
an ergonomic, compact, powerful, battery powered lift that makes moving and lifting your product safe and easy
Ergo-Lyft Standard Features
- 650 pound lift capacity at 12" horizontal from mounting plate
- Lightweight solid aluminum parts power coated to your choice of available colors
- 4 swivel casters for ease of movement
- Rear locking casters (swivel, directional and total lock) controlled by 1 foot pedal
- Ball screw lift and permanent magnet drive motor to eliminate drifting
- Hand pendant master control complimented with up/down control on handlebars
- Heavy duty 24V 22AH SLA battery system for extended run time
- Smart 24V 5AH built in battery charger with status light
- Battery charge indicator, e-stop button and speed controls all at an ergonomic, easy to reach height
easily adjustable limit switches for the up/down travel, and adjustable speed control on up/down and rotate functions
Ergo-Lyft Options
- Lithium ion batteries for extended run time and faster charging
- 3", 4", 5" and 6" front swivel and/or locking casters
- Anodizing available
- Power coated to your choice of available colors
- Custom engraving of your company logo, asset number or area designation
Whatever your application, we can design and manufacture a custom end effector to safely and efficiently lift, rotate, grip and transport your part to eliminate operator strain, fatigue and injury.
↓ Ergo-Cart ↓
a powerful height-adjustable battery operated cart capable of easily accommodating job tasks in a safer manner
Ergo-Cart Standard Features
- Pinch point decals
- Multiple aluminum pillar design
- 4 swivel casters for ease of movement
- Rear locking casters (swivel, directional and total lock)
- 120V electric pillars with programmable height adjustment
- Programmable control panel for height adjustment
Ergo-Cart Options
- Anodizing available
- Height adjustability
- Aluminum or butcher block top
- Multiple pillars for heavier application
- Power coated to your choice of available colors
- Lithium ion batteries for extended run time and faster charging
- Custom engraving of your company logo, asset number or area designation
↓ Cyclops ↓
a tabletop positioning device providing an easy and safe solution for maneuvering and holding objects steadily
- Position work piece to any ergonomic orientation for assembly, welding, inspection or any other need
- Solid aluminum with a stainless steel ball
- Able to handle up to 150 ft. lbs of torque 1 foot from center of mounting plate
- Foot pedal control of lock and unlock
- 90 degree slots for not only horizontal positioning but vertical as well
- Pneumatic powered for unlocking the ball but if air fails, the Cyclops is locked in position for safety
- Finished in customers' choice of color
↓ Wall-Mounted Articulating Arm ↓
Manufactured using solid aluminum with stainless steel fasteners and 360 degree slew bearings, our wall-mounted articulating arms are custom made for customer's weight and reach requirements. Able to fold up on itself for easy out of the way storage, they're finished in customer's choice of color.
↓ About AE Ergonomics ↓
“Safety Above All Else”Our decades of experience in industry and risk management has been combined to offer you ergonomic solutions that put safety above all else.
